CONCEPT

Configuration - Options - Quality of the air

For the 1^st time, compact units, put together all the most efficient technologies to insure the safety of the operators who works with ventilated clothing.

Several years of development and collaboration between our technical team, the AREVA NC team and users, allowed to conciliate optimal safety with a comfortable use. This system benefited of an AREVA NC patent registration.

Types of units available

Mobile units (de 70 à 210 m3/h)	Fix unit (140 m3/h)
Container 360m3/h

COMPOSITION OF THE UNITS

SECUR'AIR™ : The offer adapted to your needs.

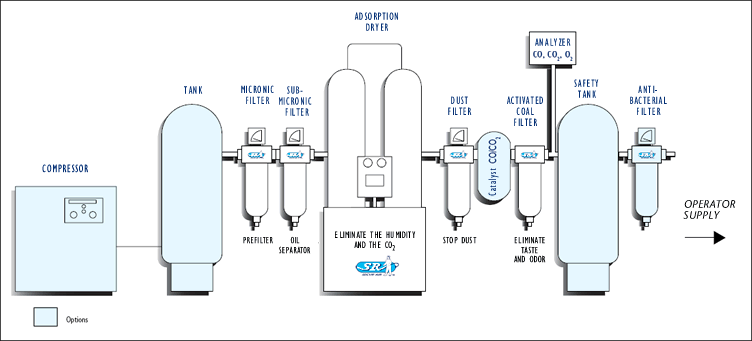

Standard configuration

Fix or mobile unit - Larger view

Our main options

• Catalyst CO/CO2
• Anti-bacterial filter
• Air rehumidifier
• Control of temperature
• Dew point analyzer

For particular needs, specific conception, Faure automatisme and its research department realize for you a custom-made installation.

Top of page

QUALITÉ DE L'AIR

We serve your Safety through our Quality pledge.

Our units, SECUR'AIR™ respect the standard EN 12021 which specifies the requirements in breathing air quality.

Oxygen

• Content oxygen: 21 % (± 1 %) in volume (dry air)

Impurities

• Lubricant (droplet or spray): < 0,5 mg/m3
• Odor and taste: impossible to detect
• Content in Carbon dioxide: < 500 ppm
• Content in Carbon monoxide: < 15 ppm

Content in water

• Absence of water free liquid
• The dew point mustn't exceed – 11°C
• Content in water:
  • from 40 to 200 bars : 50 mg/m3
  • > 200 bars : 35 mg/m3

and are the subject of regular and strict control for an unique objective:

Optimal security, quality of the air
